GA 4000ACEC Spare Parts and Manual

(Showing 30 of 30)

DOWNLOAD WAGNER GA 4000ACEC MANUAL HERE
DOWNLOAD WAGNER GA 4000ACEC BROCHURE HERE


 Item No.  Part No.  Description
 1  2312145  Gun body GA4000ACEC
 1a  2338602  Gun body GA 4000ACEC (RP)
 2  2308812  Ground plate GA 4000ACEC R
 3  2312146  Base plate GA 4000ACEC side con.
 4  9998991  Helical spring
 5  2314274  End cap short
 6  2308808  Air cap LV plus (red)
 6  2308809  Air cap HV plus (blue)
 6  2313493 Air cap LA plus (bronze)
 6  2340299  Air cap LV plus (blank)
 7  379...  AC nozzle
 8  394339  Sealing ring
 9  364328  Sealing ring nozzle
 10  2314279  Valve housing, complete
 11  9974245  O-ring
 12  2307893  Socket cap screw
 13  2314278  Head piece
 14  2313516  Standard packing
 14a  2338601  Packing insert GA 4000AC (RP)
 15  367528  O-ring
 16  9974153  O-ring
 17  2314303  Piston housing EC
 18  2308292  Socket cap screw
 19  2310534 (NC Version Only) Complete product channel lock pin
 20  2307873 (NC Version Only)  O-ring

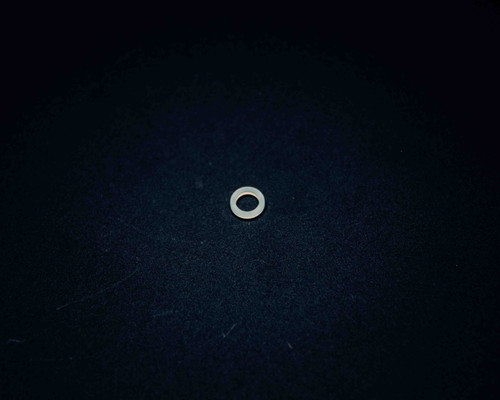

 21  2310473  Sealing product
 22  9974265  O-ring
 23  9998090  Straight screw-in fi tting
 24  9998994  Coding ring green
 25  9998995  Coding ring red
 26  9998618  Coding ring blue
 27  2316365  Adapter plate
 28  2316366  Product adapter plate
 29  2314246  Base plate
 30  248314  O-ring
 31  2310556  Hexagon socket countersunk head screw
 32  9998993  Straight screw-in fi tting
 33  9992698  Vaseline white PHHV
 34  2314302  Complete piston EC
 35  2314301  Complete valve rod EC
 36  2309945  Helical spring
 37  2322531  Piston seal EPDM
 38  9974179  O-ring
 39  2322533  Sealing set GA 4000ACEC (EPDM)
